Description
1. Overview

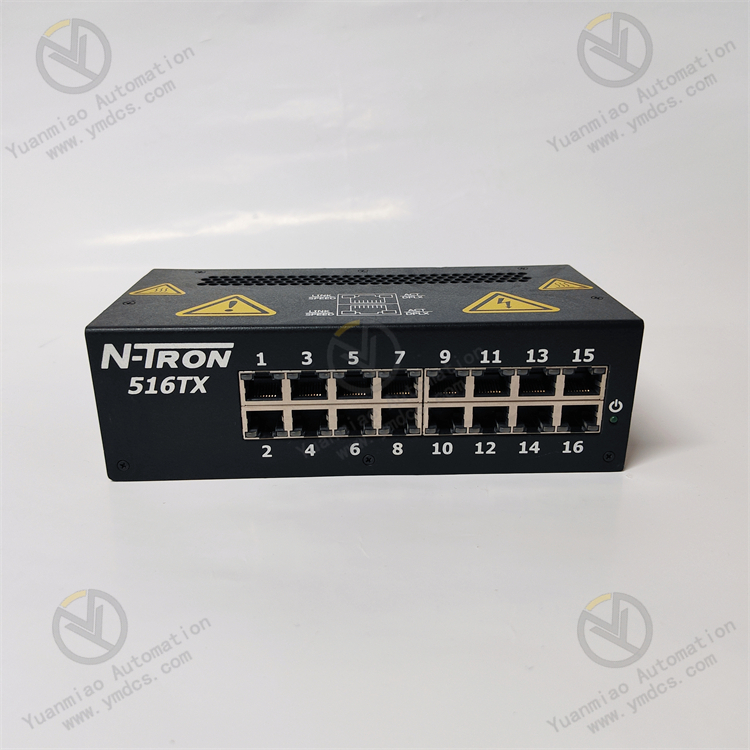

GE 516TX (Part No.: 336A4940DNP516TX) is a high-performance industrial Ethernet communication module developed by General Electric for Mark V / Mark VIe gas turbine and steam turbine control systems. It serves as core network expansion hardware within the power plant EHC electro-hydraulic control system.The module features multi-port high-speed Ethernet data exchange, control network networking for turbine units and cross-device synchronous data transmission. It acts as a critical communication hub enabling data interconnection among main control systems of large power units, distributed measurement & control units and upper monitoring platforms.
Optimized for harsh power plant operating conditions, the module integrates multiple 10/100M adaptive Ethernet ports, natively supports dedicated communication protocols for turbine control systems, and delivers high-speed data forwarding, real-time time synchronization and link redundancy fault tolerance. It boasts prominent strengths including stable communication performance, strong anti-interference capability, loss-free data transmission and maintenance-free long-term operation.It is widely deployed in gas turbine and steam turbine control systems of thermal power plants, cogeneration plants and combined-cycle power stations. Typical applications include technical upgrading of unit control systems, replacement of legacy communication modules, control network expansion and optimization of unit data transmission links, ensuring real-time, accurate and stable transmission of unit control commands, operating data and fault information.
2. Technical Features
1. Multi-Port High-Speed Ethernet with Powerful Networking Capacity
Equipped with multiple 10/100BASE-TX adaptive Ethernet interfaces supporting automatic full-duplex/half-duplex switching and high-speed data forwarding. It can simultaneously connect main controllers, I/O modules, upper SCADA systems, data acquisition servers and other equipment.A single module realizes converged networking of unit control network, monitoring network and data historian network, satisfying synchronous transmission demands for massive real-time data and high-frequency control commands of large power units. It effectively addresses limitations of traditional single-port modules such as restricted networking topology and insufficient bandwidth.
2. Native Compatibility with GE Turbine Control Systems
Specially matched with the full series of GE Mark V and Mark VIe turbine control systems. Physical pins, rack slot definitions, communication protocols and system configuration are fully compatible without extra protocol conversion or program adaptation.It supports dedicated real-time communication mechanisms of unit control systems and seamlessly integrates into existing turbine control networks. Plug-and-play replacement of legacy modules of the same model is supported, catering to upgrading, retrofitting and expansion of new and existing units without compatibility conflicts or communication risks.
3. Real-Time Time Synchronization Ensures Accurate & Reliable Unit Data
Built-in hardware-based time synchronization mechanism enables high-precision time alignment across the unit control network, guaranteeing unified data timing and synchronous command execution among all networked devices.It accurately synchronizes dynamic operating parameters including unit speed, vibration, temperature, pressure and load, eliminating data misalignment, timing disorder and command delay. It provides precise data link support for steady-state operation monitoring, transient fault tracing and startup/shutdown condition analysis of turbine units.
4. Redundant Fault-Tolerant Design Delivers Superior Communication Stability
Supports multi-link redundant networking and automatic switchover upon link failure. When a communication cable breaks or suffers signal interference, the system switches to the backup link within milliseconds without interrupting unit data transmission and control logic execution. No shutdown, data loss or data discontinuity occurs.It effectively mitigates risks of abnormal unit control and data loss caused by network fluctuation and link faults in high-interference power plant environments, greatly improving overall fault tolerance and operational reliability of the turbine control system.
5. Industrial Rugged Construction for Harsh Power Plant Conditions
Adopts industrial reinforced PCB and full-board conformal coating. Certified to CE, UL, CSA and IEEE C37.90 for surge and electrostatic protection. It offers outstanding immunity to electromagnetic interference, surge, ESD, humidity & heat and aging.It operates reliably in complex power plant environments featuring high temperature, high humidity, dust and strong electromagnetic radiation, supporting 24/7 year-round continuous operation with ultra-low failure rate and long service life.
6. Intelligent Self-Diagnosis for Efficient Maintenance & Troubleshooting
Equipped with status indicator LEDs and hardware self-diagnosis functions to monitor port connection status, network speed, data transceiving, link faults and module operating status in real time.It supports online fault location, link abnormality alarms and operation log storage. Network inspection and module maintenance can be performed without shutdown, significantly reducing unit maintenance difficulty and system downtime costs, meeting demands of unattended continuous operation in power plants.
3. Technical Specifications
1. Basic Parameters

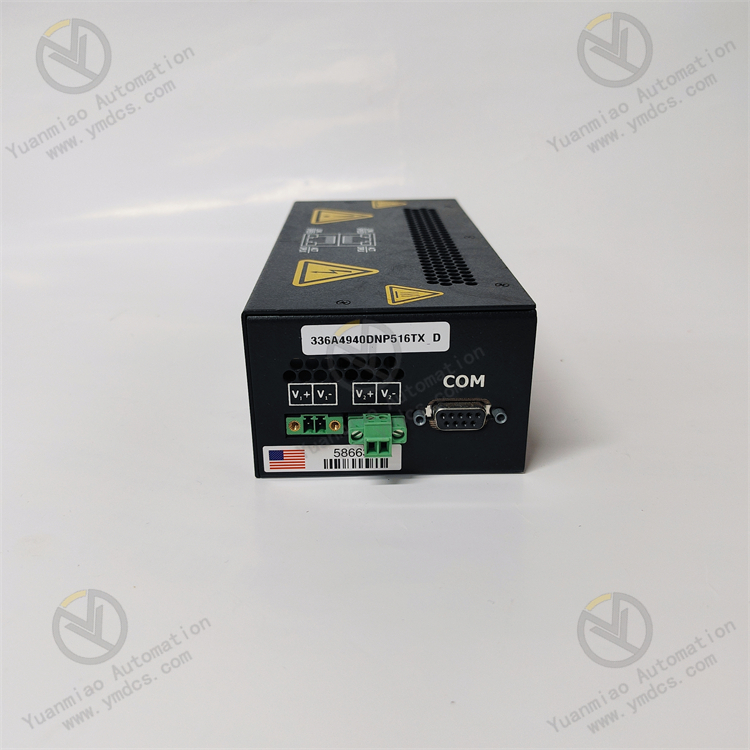

Model: 516TXPart Number: 336A4940DNP516TXBrand: GE (General Electric)Product Type: Industrial Ethernet Communication Module for Turbine Control SystemsCompatible Systems: GE Mark V / Mark VIe Gas Turbine & Steam Turbine Control SystemsCore Functions: High-speed Ethernet data transmission, unit control network networking, multi-device data synchronization, link redundancy fault tolerance, time synchronization, network status self-diagnosisApplication Scenarios: Turbine control systems of thermal / cogeneration / combined-cycle power plants, replacement of legacy communication modules, control network expansion, technical upgrading of unit control systems
2. Communication Performance Parameters
Port Specification: 10/100BASE-TX adaptive Ethernet portsTransmission Rate: 10 Mbps / 100 Mbps auto-adaptive; automatic full/half-duplex switchingCommunication Protocols: Natively compatible with dedicated GE turbine control system protocols; compatible with standard TCP/IP protocol stackSynchronization Accuracy: Hardware high-precision time synchronization with consistent timing across the whole networkFault Tolerance: Multi-link redundant backup, automatic failure switchover, breakpoint data resumptionTransmission Characteristics: Low latency, high bandwidth, loss-free transmission, no data distortion; suitable for real-time unit control applications
3. Electrical Parameters
Power Supply: Standard industrial DC power supplyOperation Mode: Low power consumption and low heat generation for stable long-term operationProtection Standard: IEEE C37.90 surge & electrostatic protectionElectrical Characteristics: Immunity to grid fluctuation, electromagnetic crosstalk and transient voltage surgesOperation Feature: Starts operation upon power-on, free of frequent startup/shutdown failures for continuous process conditions
4. Mechanical & Mounting Parameters
Mounting Method: Dedicated rack slot installation for turbine control systems; supports hot-swap replacementProtection Process: Full-board PCB conformal coatingIngress Protection: IP20 (cabinet-mounted)Structural Feature: Standard modular design, compact and easy to install/remove, matching OEM rack layoutHardware Matching: Fully compatible with slot definitions, bus specifications and wiring standards of Mark V / Mark VIe racks
5. Environmental Parameters
Operating Temperature: -20℃ ~ +70℃Storage & Transport Temperature: -30℃ ~ +80℃Operating Humidity: 5%～95% RH (non-condensing, no corrosive gas)Environmental Resistance: EMI resistance, vibration resistance, humidity-heat resistance, dust-proof, anti-agingOperation Mode: Supports 24/7 unattended continuous industrial operation all year round
4. Operating Principle
The GE 516TX (336A4940DNP516TX) communication module follows the core workflow: Rack Power-Up Initialization → Hardware Self-Diagnosis → Network Link Matching → Data Transceiving & Forwarding → Time Synchronization Calibration → Redundant Fault-Tolerant Protection.
During operation, acting as the core network hub of the unit control system, the module receives control commands from main controllers, operating data from field I/O modules and equipment status signals in real time. It performs data forwarding, protocol parsing and timing calibration via high-speed Ethernet ports, synchronously uploading data to upper monitoring systems and data servers while issuing remote regulation commands to field control units.
5. Application Scenarios
1. Networking of Main Turbine Control Systems for Large Power Plants
Primarily applied to GE Mark V / Mark VIe gas turbine and steam turbine control systems in thermal power plants, cogeneration plants and combined-cycle power stations. It undertakes high-speed data exchange and networking tasks between unit main controllers, I/O measurement & control units and upper monitoring systems.It ensures real-time transmission of data and commands throughout unit startup, load regulation, steady-state operation and fault protection sequences, serving as core network hardware for reliable operation of turbine control systems.
2. Technical Retrofit & Hardware Replacement for Legacy Turbine Units
It can directly replace aged or faulty legacy Ethernet communication modules on-site. No modification to rack structure, system configuration, network topology or field wiring is required.It rapidly resolves common issues including network congestion, data packet loss, frequent link dropouts and communication latency, enabling low-cost communication performance upgrading of legacy turbine control systems and shortening unit maintenance downtime.
3. Expansion & Upgrade of Unit Control Networks
Suitable for process upgrading, measuring point expansion and intelligent transformation of power units. Leveraging multi-port networking capability, it expands control network bandwidth and access capacity to accommodate newly added measurement & control devices, data acquisition terminals and intelligent monitoring systems. It improves overall data transmission efficiency and networking redundancy of the turbine control system.
4. High-Precision Unit Data Monitoring & Fault Tracing
Supported by high-precision time synchronization and stable high-speed transmission, it delivers real-time upload and archiving of critical dynamic parameters including unit vibration, speed, shaft displacement, temperature, pressure and load.It provides complete, accurate and time-aligned data support for steady-state monitoring, transient fault tracing, performance analysis and predictive maintenance, ensuring long-term safe, stable and efficient operation of power generation units.
