Description
1. Product Overview

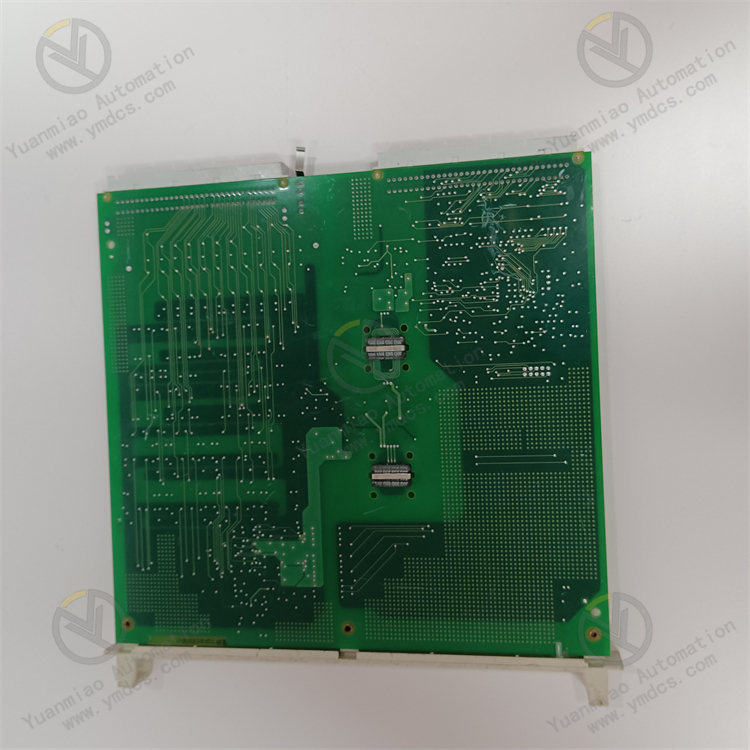

ABB DSAI130A (Part No.: 3BSE018292R1) is a high-precision industrial analog input module of the ABB Advant OCS / S800 I/O series, serving as standard acquisition hardware for process control systems. Acting as the core signal interface between DCS and field process sensors, the module integrates 16 isolated analog acquisition channels. It is specially designed for high-speed, accurate acquisition, filtering and preprocessing of process analog signals such as temperature, pressure, flow, level and differential pressure in industrial sites, and constitutes a key I/O module for automatic control systems in process industries including power, chemical, metallurgy and oil & gas.
DSAI130A supports full-range acquisition of standard industrial current and voltage analog signals. Equipped with high-precision AD conversion chips and multi-stage digital filtering algorithms, it features high acquisition accuracy, outstanding signal stability, superior anti-interference capability and fast response. Natively compatible with the ABB S800 I/O bus architecture, it can be seamlessly integrated into the complete ABB AC800M and Advant OCS control systems. It supports hot swapping over the bus, on-board diagnosis and channel fault self-detection. Widely used in engineering scenarios including new DCS system assembly, I/O point expansion for legacy systems, technical renovation and spare part replacement, it meets continuous, high-reliability and high-precision industrial process monitoring and regulation conditions.
2. Technical Features
2.1 High-Density Integration of 16 Channels for Strong Point Expansion Capacity
A single module incorporates 16 fully independent analog input channels with high channel density. It enables centralized acquisition of various plant-wide process analog parameters, significantly reducing the quantity of modules in cabinets, simplifying the I/O architecture and saving cabinet installation space. Each channel performs signal processing independently without mutual interference. Single-channel configuration and isolated single-point faults are supported; abnormalities on one channel will not affect acquisition on other channels. It meets the demand for centralized monitoring of massive analog points in large-scale facilities.
2.2 Compatibility with Multiple Signal Types for Excellent Versatility
The module supports standard industrial analog signals: 4～20 mA, 0～20 mA DC current and ±10 V DC voltage. It can directly connect with most industrial sensors and primary instruments such as pressure, flow, level, temperature and differential pressure transmitters. No additional signal isolators or converters are required. Signal types of each channel can be freely switched via system configuration, adapting to acquisition requirements of different process points with strong field adaptability and universality.
2.3 Ultra-High Acquisition Accuracy for Precise and Stable Process Control
Adopting industrial-grade high-precision AD conversion unit with steady-state acquisition accuracy up to 0.025%, combined with multi-stage hardware filtering and intelligent digital filtering algorithms, the module effectively suppresses high-frequency interference, signal fluctuation and clutter noise on site. Acquired data features high linearity, low temperature drift error and no long-term drift. It provides high-precision data support for system PID regulation, process interlocks, parameter monitoring and over-limit alarms, satisfying strict high-precision control requirements of fine chemical, thermal power and precision process industries.
2.4 High-Speed Sampling Response with Excellent Real-Time Performance
The module supports a maximum update rate of 1000 Hz. It completes full-channel data acquisition, conversion and uploading within milliseconds with fast data refresh and extremely low latency. It can accurately capture instantaneous changes of process parameters and adapt to control scenarios with dynamic process regulation and rapid condition variation. It thoroughly eliminates regulation deviation caused by data lag and delayed update of traditional low-speed acquisition modules, ensuring real-time performance and tracking capability of the entire control system.
2.5 Full-Channel Electrical Isolation with Outstanding Anti-Interference Performance
All analog input channels adopt independent electrical isolation design to realize complete isolation between channels, internal and external loops, and strong and weak circuits. Built-in surge suppression, ESD protection and electromagnetic shielding structures effectively resist severe interferences on industrial sites such as inverter harmonics, electromagnetic radiation from high-voltage equipment, power fluctuation and ground loop current. Signal distortion, data jumping and abnormal acquisition are avoided, making it suitable for harsh high-interference industrial environments in power plants, chemical plants and metallurgical sites.
2.6 Hot-Swap and Online Maintenance Support to Secure Continuous Production
Hot-swap installation and replacement are allowed under live operating conditions. No system shutdown, process halt or interruption of control logic is required during module maintenance, fault replacement or point expansion. The module is equipped with comprehensive on-board self-diagnosis functions to monitor channel open-circuit, short-circuit, signal over-range, hardware failure and bus anomalies in real time. Fault points can be precisely located and alarm information uploaded, greatly lowering downtime risks for maintenance and adapting to 7×24-hour continuous production conditions.
2.7 Native System Compatibility for Rapid Adaptation with Minimal Commissioning
Natively compatible with the ABB S800 I/O bus as well as the full series of AC800M and Advant OCS control systems. Bus protocols, point definitions, communication timing and configuration logic are fully matched with original specifications. Automatic system identification, mounting and parameter synchronization are supported. Replacement of legacy modules in situ requires no modification to system programs and control logic. The module can be commissioned for operation merely by simple channel parameter setup, greatly reducing difficulties in technical renovation and maintenance.
3. Technical Specifications
3.1 Basic Specifications
Model: DSAI130A Part Number: 3BSE018292R1 Brand: ABB Product Series: S800 I/O / Advant OCS Control System Device Type: High-Precision Analog Input Module Function Orientation: Industrial analog signal acquisition, filtering preprocessing, data uploading, process parameter monitoring Channel Configuration: 16 independent analog input channels Core Advantages: High-density integration, high-precision acquisition, multi-signal compatibility, fast response, strong anti-interference, hot-swap maintenance
3.2 Channel and Acquisition Performance Parameters
Input Channels: 16 isolated analog input channels Supported Signal Types: 4～20 mA, 0～20 mA DC current; ±10 V DC voltage Acquisition Accuracy: 0.025% steady-state accuracy Maximum Data Update Rate: 1000 Hz Sampling Mode: Differential high-precision sampling to effectively suppress common-mode interference Filtering Method: Hardware filtering + multi-stage intelligent digital filtering Channel Configuration: Independent configuration per channel; signal type, measuring range and filtering parameters can be set separately Acquisition Characteristics: High linearity, low temperature drift, no long-term zero drift
3.3 Electrical Performance Parameters
Supply Voltage: Standard 24 V DC industrial power supply Supply Voltage Range: 18～32 V DC wide voltage adaptation Electrical Isolation: Full-channel electrical isolation without crosstalk between channels Protection Configuration: Built-in multi-stage protection against overvoltage, overcurrent, short circuit, surge and ESD Insulation Performance: Complies with high-voltage insulation standards for industrial DCS systems, tolerating regular voltage surges and fluctuations Power Consumption: Low-power design, low temperature rise, stable long-term operation without anomalies
3.4 Bus and Communication Parameters
Compatible Bus: Dedicated field bus for ABB S800 I/O Communication Features: High-speed bus data exchange; real-time upload of channel acquisition data and device status Configuration Tool: Official ABB software including Control Builder Diagnostic Functions: Channel fault diagnosis, bus status monitoring, module hardware self-test, fault code upload Data Synchronization: High data synchronization with main controller, no data packet loss or timing dislocation
3.5 Mechanical and Installation Parameters
Mounting Method: Slot mounting on standard S800 system rack Structure: Compact standardized module structure Housing Material: Industrial flame-retardant, dust-proof and anti-aging engineering plastic Wiring Method: Standard cabinet terminal wiring with standardized layout, reliable contact and convenient maintenance Compatible Rack: Dedicated mounting racks for ABB S800 I/O series
3.6 Environmental Specifications
Operating Temperature: -20℃～+60℃ Storage Temperature: -40℃～+85℃ Operating Humidity: 5%～95% RH (non-condensing, no corrosive gas) Environmental Resistance: Electromagnetic interference immunity, humidity resistance, dust resistance, vibration resistance, temperature shock resistance Protection Class: IP20 (installed inside standard cabinet) Operation Mode: 7×24-hour unattended continuous stable operation all year round
4. Operating Principle
The ABB DSAI130A analog input module operates based on the S800 I/O bus architecture and high-precision differential acquisition principle. After power-on, the module automatically completes hardware self-test, channel initialization and bus attachment, and synchronizes control system configuration parameters, range settings, filtering parameters and channel attributes.
During normal operation, 16 independent channels simultaneously receive current/voltage analog signals output by field transmitters. Differential sampling circuits eliminate common-mode interference. After noise reduction via hardware filtering, signals are sent to the high-precision AD conversion unit to convert analog signals into standard digital signals. The built-in processor performs secondary digital filtering, range conversion, data verification and anomaly screening on digital signals to eliminate interference clutter and abnormal data. Accurate process parameters are finally uploaded to the DCS main controller via the S800 bus, providing reliable data support for system parameter display, logic operation, PID regulation, over-limit alarming and interlock control.
The module continuously monitors signal status, circuit continuity and hardware conditions of each channel. Once anomalies such as signal open-circuit, short-circuit, over-range or hardware failure are detected, the faulty channel is locked immediately and fault alarm codes uploaded. Meanwhile, other healthy channels maintain continuous acquisition, realizing fault-tolerant, stable and closed-loop operation of the analog acquisition system.
5. Application Scenarios
5.1 Process Parameter Acquisition for DCS in Process Industries
Widely deployed in distributed control systems of thermal power, cogeneration, chemical, petrochemical, metallurgy, oil & gas, water treatment and other industries. It centrally collects core process analog parameters including pressure, temperature, flow, level, concentration and differential pressure on site to realize real-time monitoring, precise parameter regulation and stable control of plant-wide process conditions. It serves as core acquisition hardware for automatic monitoring in process industries.
5.2 High-Precision Process Regulation and Fine Control Scenarios
Supported by ultra-high acquisition accuracy of 0.025%, it adapts to scenarios requiring strict parameter stability and precision such as fine chemical engineering, thermal power generation and precision production. It provides stable and accurate data sources for high-precision PID control loops including boiler water level regulation, closed-loop temperature & pressure regulation and flow ratio control, ensuring stable production and consistent product quality.
5.3 I/O Expansion and Technical Renovation of Legacy DCS Systems
Applicable to upgrading and retrofitting of legacy ABB S800 DCS systems. It is used to supplement analog acquisition points and replace aging acquisition modules with degraded accuracy and high failure frequency, improving overall acquisition precision and operational reliability of the system. In-situ installation requires no modification to cabinets and bus architecture, enabling intelligent and high-precision system upgrading with low investment.
5.4 Industrial Equipment Condition Monitoring and Fault Diagnosis
It can acquire equipment status signals such as unit vibration, temperature and oil pressure. Cooperated with control systems, it realizes real-time monitoring of equipment operating conditions, early warning of anomalies and fault tracing, facilitating predictive maintenance, lowering equipment unplanned shutdown risks and guaranteeing safe and stable operation of units.
5.5 General Industry Standard Automation Spare Parts
As a highly versatile core analog acquisition module for ABB S800 DCS systems, it boasts wide compatibility, massive field application and frequent replacement demand. It is essential spare inventory for power, chemical and automation maintenance enterprises. It enables rapid response to emergencies including module failure, channel abnormality and acquisition loss, and quickly restores process acquisition and monitoring functions of the system.
