1. Product Overview

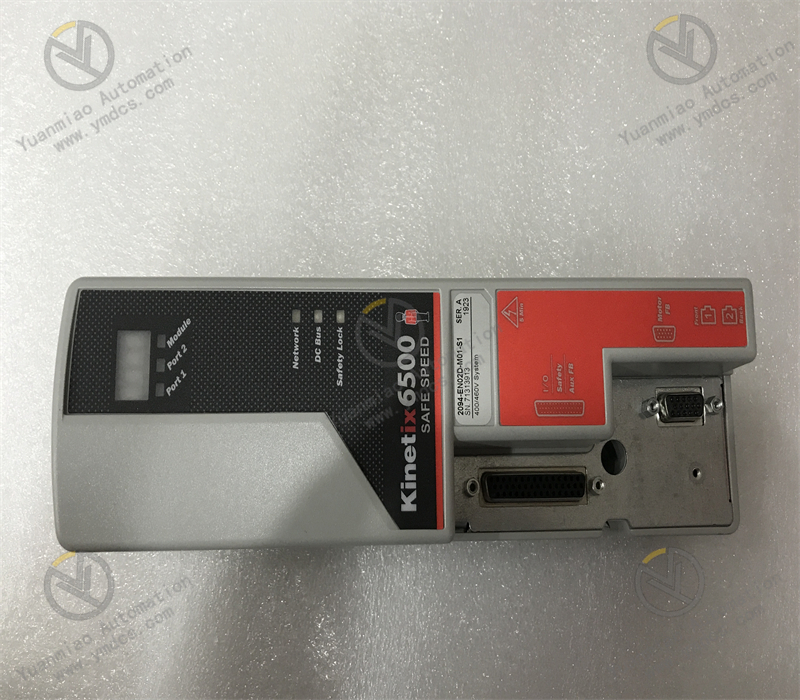

Allen‑Bradley 2094‑EN02D‑M01‑S1 is a dedicated EtherNet/IP network safety control module for Rockwell Automation Kinetix 6200/6500 series. It serves as the core communication and safety‑control unit of multi‑axis servo drive systems, and is designed for networking with 2094‑series IAM integrated axis modules and split power modules. Unlike power drive modules, this module does not deliver power output. It focuses on servo system bus communication, motion‑control calculation and safety‑function management, acting as the "control hub" of the complete high‑end Kinetix 6500 servo system.
Featuring a dual‑port EtherNet/IP bus architecture, it supports high‑speed real‑time motion‑control communication. Equipped with dual‑safety mechanisms including Safe Torque‑Off (STO) and Safe Speed monitoring, it achieves an ultra‑high motion‑control refresh cycle of 500 μs and realizes sophisticated processes such as high‑precision multi‑axis synchronization, electronic cam operation and interpolation linkage. Compatible with 400/460 V high‑voltage multi‑axis servo systems, it is widely used for precision motion control on high‑end automated production lines, equipment technical retrofits, and spare‑part replacement for legacy Kinetix 6500 systems. With advantages of high‑speed communication, high safety rating, strong anti‑interference capability and convenient configuration, it is a core control module for industrial high‑end multi‑axis servo control systems.
2. Functional Features
High‑speed EtherNet/IP bus communication with excellent real‑time performance Adopting the industrial‑standard real‑time EtherNet/IP Ethernet bus and built‑in dual‑port switch structure, it supports device‑level ring networking and daisy‑chain serial networking. Multi‑axis servo cascading can be implemented without additional switches. The motion‑control refresh cycle can reach as low as 500 μs, delivering ultra‑low communication latency and high synchronization accuracy. It perfectly supports high‑frequency precision processes such as high‑speed multi‑axis linkage, trajectory interpolation, precision synchronous flying‑shear cutting and flying capture, outperforming ordinary bus‑based servo control.
Integrated dual‑level industrial safety functions for higher compliance rating The module is equipped with Safe Torque‑Off (STO) and Safe Speed monitoring. Compliant with ISO 13849 industrial machinery safety standards, it enables safe shutdown, over‑speed protection and maintenance safety interlock. A complete servo safety protection system can be constructed without external safety relays or safety modules. Suitable for manned high‑end automated equipment requiring frequent maintenance and safety interlocks, it meets CE and machinery‑safety acceptance specifications.
Independent control calculation for multi‑axis coordinated systems As an independent control unit of the servo system, it centrally manages multiple 2094‑series power drive modules and performs closed‑loop calculation for position, speed and torque, together with group‑axis synchronization and process‑logic coordination. A single module governs multi‑axis coordinated motion with minimal inter‑axis synchronization error, effectively solving problems such as multi‑axis desynchronization, equipment jitter and process deviation for complex high‑precision automated processes.
Plug‑and‑play modular networking with excellent expandability With standardized modular design, it is fully compatible with all power axis modules of Kinetix 6200/6500 series. Servo axes can be flexibly added or removed without reconstructing the overall system architecture during expansion or retrofit. Dual Ethernet ports enable seamless cascading of upstream and downstream devices. Simplified wiring reduces cabinet cabling and communication failure points, greatly improving system stability.
High‑precision motion algorithms for wide process adaptability Embedded with Rockwell proprietary high‑end motion‑control algorithms, it supports sophisticated motion processes including electronic cam, gear synchronization, phase following, high‑speed positioning and flexible interpolation. It delivers smooth speed regulation, accurate positioning and fast dynamic response. Suitable for various high‑speed, high‑precision and high‑dynamic automated precision equipment, it improves processing accuracy and production tact time.
Comprehensive fault diagnosis and protection for efficient and controllable operation It continuously monitors bus communication status, servo‑axis operating parameters, safety‑loop conditions and module temperature. It accurately identifies communication anomalies, axis faults, safety‑loop disconnection and parameter errors, with detailed fault codes and diagnostic information provided. Fault memory, online monitoring and real‑time traceability shorten troubleshooting time, fitting continuous unattended industrial production.
- Industrial‑grade anti‑interference design for stable and reliable operation Built‑in EMC filtering, bus‑signal voltage stabilization and surge‑suppression circuits resist electromagnetic interference from on‑site frequency converters, high‑frequency devices and motor start‑stop events. It prevents packet loss, intermittent communication dropout, servo runaway and false alarms. It maintains high stability for long‑term continuous operation under complex industrial electromagnetic conditions.
3. Technical Specifications
3.1 Basic Specifications
Product Model: 2094‑EN02D‑M01‑S1 Manufacturer: Allen‑Bradley (Rockwell Automation) Product Series: Kinetix 6200/6500 High‑End Multi‑Axis Servo Drive System Product Type: EtherNet/IP Network Safety Control Module Core Positioning: Core unit for bus communication, motion calculation and safety management of multi‑axis servo systems Key Characteristics: Dual‑port EtherNet/IP, 500 μs high‑speed refresh, STO + Safe Speed monitoring, multi‑axis synchronization control, modular networking, intelligent fault diagnosis
3.2 Communication Parameters
Communication Protocol: Standard EtherNet/IP (ODVA‑compliant) Hardware Interface: Dual RJ45 Ethernet ports supporting cascaded networking Motion Refresh Cycle: Minimum 500 μs Communication Features: Real‑time high‑speed transmission, low latency, high synchronization accuracy; supports ring and linear topologies Compatible Devices: Full range of Rockwell Automation PLCs, motion controllers and 2094‑series power drive modules
3.3 Safety‑Function Parameters
Safety Functions: Safe Torque‑Off (STO), Safe Speed monitoring Safety Rating: Compliant with ISO 13849 machinery safety standard Safety Mechanism: Hardware‑based safety‑loop monitoring, fault self‑locking, safety‑status latching Application Effects: Enables safe equipment shutdown, over‑speed protection and maintenance safety protection to eliminate risks of unintended motor movement
3.4 Control‑Performance Parameters
Control Capabilities: Multi‑axis group synchronous calculation, electronic cam, trajectory interpolation, phase synchronization, high‑speed positioning Calculation Cycle: Ultra‑high‑precision 500 μs cycle Control Modes: Supports coordinated closed‑loop control of position, speed and torque Process Compatibility: Supports high‑speed, high‑precision, dynamic and complex multi‑axis linkage processes
3.5 Mechanical & Structural Parameters
Mounting: Standard industrial DIN‑rail cabinet mounting Structure: Compact modular form factor matching 2094‑series servo cabinet layout Interfaces: Dual Ethernet communication ports, safety signal terminals, status LED indicators, fault‑diagnosis port Housing Material: High‑strength flame‑retardant industrial insulating housing with dust‑proof, anti‑aging and anti‑EMI properties
3.6 Environmental Specifications
Operating Temperature: 0 ℃ ~ +45 ℃ Storage Temperature: ‑20 ℃ ~ +70 ℃ Relative Humidity: 5%‑95%, non‑condensing Ingress Protection: IP20 (cabinet‑mounted only) Operation Mode: 7×24‑hour continuous industrial operation Typical Applications: High‑end automated production lines, precision machining, high‑speed packaging, intelligent logistics, rubber‑and‑plastics molding and other high‑precision servo scenarios
4. Hardware Configuration & Structural Advantages
Dual‑port cascading architecture for simplified and efficient networking Equipped with two independent Ethernet ports, it realizes linear cascading and ring networking of multiple servo modules without external industrial switches. It greatly reduces cabinet cabling quantity, wiring cost and communication failure points. Flexible topologies simplify maintenance for high‑density multi‑axis servo control systems, delivering cleaner cabinet layout and higher system stability.
Microsecond‑level high‑speed calculation for superior multi‑axis synchronization accuracy The ultra‑short 500 μs motion‑control refresh cycle significantly improves computing response compared with conventional servo control modules. It precisely handles high‑frequency dynamic processes such as high‑speed flying cutting, synchronous color registration and multi‑axis trajectory linkage. It eliminates inter‑axis synchronization deviation, signal lag and equipment jitter under high‑speed operating conditions to guarantee extreme processing accuracy.
Integrated advanced safety design without redundant external hardware Dual‑safety mechanisms of STO shutdown protection and Safe Speed monitoring are implemented with hardware‑based safety‑loop supervision. Offering high safety level and reliable action, it meets machinery‑safety‑certification requirements for high‑end equipment without additional safety relays or modules. It lowers equipment‑retrofit cost and simplifies safety‑loop wiring for standardized and compliant high‑end automated equipment.
Proprietary servo‑control algorithms for outstanding process adaptability Adopting high‑end Kinetix 6500 motion‑control algorithms optimized for industrial precision‑motion applications, it generates smooth electronic‑cam profiles, high‑accuracy interpolation and shock‑free speed transitions. It fits complex non‑standard automated processes, balancing production speed and processing precision for upgrades of high‑precision equipment.
Modular compatible design for easy replacement and expansion Fully compatible with all 2094‑series IAM integrated axis modules and split power modules with universal software‑hardware parameters and configuration compatibility. It supports direct on‑site replacement in legacy systems without program modification or rewiring. New axis modules can be cascaded for system expansion, minimizing retrofit downtime and maintenance cost.
- Visual intelligent diagnosis for higher maintenance efficiency Built‑in status indicators and fault‑code traceability functions monitor bus status, safety‑loop condition and module operation in real time. Accurate fault localization and clear root‑cause analysis reduce troubleshooting effort, suiting unattended continuous‑production operation modes in factories.
5. Application Scenarios
High‑end multi‑axis coordinated automated production lines: Deployed in precision assembly equipment, intelligent assembly lines and multi‑axis synchronous conveying machinery to achieve high‑precision multi‑axis coordinated motion and point‑to‑point positioning for high‑speed and stable automated production.
High‑speed precision packaging and printing equipment: Suitable for high‑speed laminators, rotary printing presses, high‑speed cutters and color‑register printing machines. It performs high‑speed synchronous color tracking, dynamic cutting and electronic‑cam feeding for high‑precision high‑speed processes.
Precision‑machinery and intelligent manipulator equipment: Applied in multi‑axis manipulators, auxiliary precision CNC equipment and trajectory‑processing machinery. It delivers smooth trajectory interpolation, accurate attitude control and fast dynamic response to satisfy precision‑machining requirements.
- High‑end rubber‑and‑plastics molding equipment: Used in multi‑axis servo‑control systems for precision injection molding, extrusion and blow‑molding machines. It implements precise pressure closed‑loop, position closed‑loop and multi‑axis synchronous linkage to improve molding accuracy and product yield.
6. Product Advantages
Microsecond‑level high‑speed control leading in process accuracy: 500 μs ultra‑fast refresh cycle provides excellent multi‑axis synchronization and dynamic response, supporting state‑of‑the‑art high‑speed high‑precision motion processes.
Integrated dual‑safety functions for worry‑free compliance: Dual‑layer STO and Safe Speed protection complies with international machinery‑safety standards, satisfying acceptance and export compliance requirements for high‑end equipment.
Dual‑port cascading networking for simplicity and stability: No external switch required; simplified multi‑axis cascading wiring reduces failure nodes and enhances system anti‑interference performance and reliability.
Excellent full‑series compatibility and universality: Fully interoperable with all 2094‑series power modules for legacy and new systems, lowering costs for replacement, expansion and retrofitting.
High industrial‑grade stability for reliable continuous operation: Anti‑EMI capability, voltage‑fluctuation resistance and fault self‑locking ensure low failure rate under 7×24‑hour heavy‑duty industrial production.
- Intelligent diagnostic maintenance for low after‑sales cost: Visualized faults and precise code‑based traceability accelerate troubleshooting and shorten equipment downtime.
