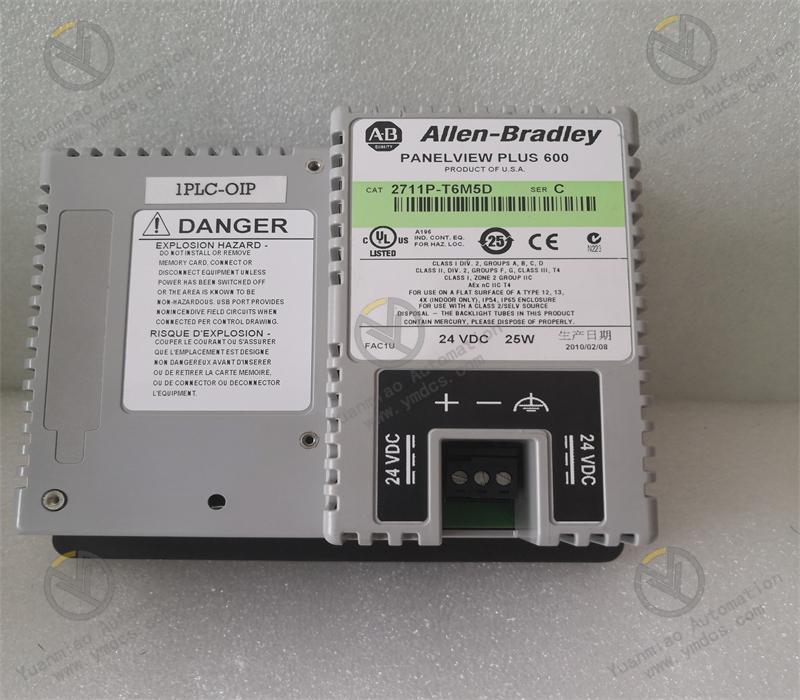

Allen Bradley 2711P-T6M5D Industrial Human‑Machine Interface

Description

Ⅰ. Product Overview

Allen‑Bradley 2711P‑T6M5D belongs to the PanelView Plus 6 600 Series industrial Human‑Machine Interface (HMI) manufactured by Rockwell Automation. It is a compact grayscale touch‑operated industrial terminal designed for small‑and‑medium‑size automated equipment, local on‑site operation and compact cabinet installation scenarios. Equipped with a 5.7‑inch industrial‑grade grayscale TFT display and pure‑touch operation, it pre‑installs Windows CE 6.0 industrial operating system with dedicated RAM and non‑volatile flash memory, and provides native compatibility with the full range of Rockwell Automation PLC control systems.

Featuring stable operation, low power consumption, strong anti‑interference performance and convenient configuration, this unit realizes reliable device communication and data exchange via RS232 serial port and USB expansion interfaces. It is widely deployed in machinery manufacturing, packaging equipment, environmental‑protection & water‑treatment, light‑industry automation and complete industrial control equipment. Serving as a core human‑machine terminal for on‑site parameter monitoring, equipment operation, fault alarming and data logging, it is also applicable to engineering projects such as legacy‑HMI upgrade‑replacement, production‑line retrofitting and system expansion.

Ⅱ. Functional Features

1. Industrial‑grade Grayscale High‑definition Display for All‑day Visibility It adopts a 5.7‑inch industrial‑grade grayscale TFT‑LCD with 320×240 resolution and 16‑level grayscale rendering, delivering clear image hierarchy and accurate data presentation. The high‑brightness LED backlight reaches 440 cd/m² with low‑reflective and anti‑glare properties, which effectively mitigates strong light and reflection interference in workshops. Process data, equipment status and alarm messages can be clearly read under various lighting conditions. The service life of LED backlight is no less than 25 000 hours without brightness degradation over long‑term operation, satisfying industrial round‑the‑clock operating requirements.
2. Precise Pure‑touch Operation Suited for Industrial Conditions A 4‑wire analog resistive industrial touch screen is adopted with optimized actuation force for industrial operation. It supports gloved operation and slight oil‑contaminated working conditions with fast response, accurate positioning and zero drift or malfunction. The touch panel is reinforced for wear resistance and withstands millions of touches. Scratch‑proof and durable, it maintains stable touch performance under frequent high‑frequency operation for harsh workshop environments.
3. Stable Serial‑port Communication Compatible with Mainstream Industrial Control Systems Native RS232 industrial serial communication interface supports standard industrial protocols for seamless connection with full‑range Allen‑Bradley PLCs and various third‑party automation controllers to realize reliable data acquisition, logic interlock and instruction interaction. Dual‑USB ports (host & device) support program upload/download, peripheral connection and data copying. With stable communication and broad compatibility, it meets networking requirements of small‑and‑medium automation systems.
4. Reliable Storage & Operation for Fine‑grained Control Equipped with ample RAM and non‑volatile flash memory with sufficient user‑accessible storage space. It reliably executes running configuration screens, recipe storage, historical‑data logging and alarm‑log archiving. Multi‑task parallel processing ensures smooth screen switching and lag‑free data refreshing to fulfill fine‑grained monitoring, data traceability and process‑parameter management for small‑and‑medium‑size production lines.
5. Industrial‑grade Protection for Low‑power Stable Operation The enclosed sealed industrial structure provides dust‑proof, moisture‑proof, vibration‑resistant and EMI‑shielding performance for workshop conditions with dust, temperature‑humidity fluctuation and minor vibration. With wide‑range DC power input, low power draw and low heat generation, it supports 24‑hour non‑stop continuous operation at extremely low hardware failure rate, suitable for unattended long‑duration production.
6. Convenient Configuration & Multi‑functional Operation‑maintenance Compatible with FactoryTalk View ME configuration software for efficient screen editing, logic setup and program commissioning. It supports online switching among 20 languages and two‑level password access management to guarantee safe and standardized operation. A hot‑swappable SD‑card slot enables firmware upgrade, program backup and data export for convenient later‑stage maintenance, function iteration and equipment commissioning.

Ⅲ. Technical Specifications

1. Basic Specifications Model: 2711P‑T6M5D Product Series: PanelView Plus 6 600 Series Device Type: Compact Industrial HMI Screen Size: 5.7‑inch Display Type: Grayscale TFT‑LCD Operation Mode: Pure touch operation Operating System: Windows CE 6.0 Industrial OS
2. Display & Touch Parameters Screen Resolution: 320×240 Grayscale Level: 16‑level grayscale Brightness: 440 cd/m² Backlight: Long‑life white LED backlight Touch Type: 4‑wire analog resistive industrial touch; accurate touch, fast response, scratch‑proof and wear‑resistant for long‑term high‑frequency industrial operation.
3. Performance & Storage Parameters System RAM: 256 MB industrial‑grade RAM Flash Memory: 512 MB non‑volatile flash memory User‑available Memory: approx. 73 MB Supported Configuration Software: FactoryTalk View ME V6.10 and above; stably supports configuration runtime, data storage, recipe management and log recording.
4. Communication & Interface Parameters Serial Interface: 1×RS232 communication port USB Interfaces: 1×USB host port, 1×USB device port Expansion Slot: Hot‑swappable SD‑card slot Supports serial‑port data exchange, USB peripheral connection, program read‑write and firmware upgrade to satisfy general industrial‑control communication and maintenance requirements.
5. Electrical Parameters Power Supply: Wide‑range DC 18‑30 V (rated 24 V DC) Typical Power Consumption: 9 W Maximum Power Consumption: 15 W Compliant with SELV/PELV safety low‑voltage power system. Built‑in voltage‑stabilizing, filtering and surge‑protection circuits for immunity against power‑grid fluctuation and electrical interference.
6. Environmental & Mounting Parameters Operating Conditions: Industrial wide‑temperature range; dust‑proof, moisture‑proof, vibration‑resistant and EMI‑resistant. Mounting Method: Standard flush panel‑mount. Compact footprint with superior sealing, suitable for small control cabinets and stand‑alone machine panels; space‑saving and easy installation.

Ⅳ. Hardware Configuration & Structural Advantages

1. Stable Industrial‑grade Hardware Architecture Adopts dedicated Rockwell Automation industrial processor and optimized system architecture for high‑efficiency computation and stable runtime. Multi‑task processing runs smoothly without freeze‑ups. Rigorously screened industrial hardware features anti‑aging performance and wide temperature tolerance with no performance degradation under long‑term heavy‑load operation for continuous industrial‑production scenarios.
2. Long‑life Grayscale Display System Industrial‑purpose grayscale TFT display paired with long‑life LED backlight module achieves lower power consumption, higher stability and longer service life compared with color displays. Free of color distortion and yellowing‑aging defects, it is cost‑effective for industrial applications prioritizing stable operation rather than color rendering.
3. Compact Integrated Sealed Enclosure Monolithic sealed mechanical design features slim and compact form factor. The front panel is dust‑proof, water‑resistant and oil‑resistant, effectively preventing ingress of dust, moisture and debris to protect core circuits and reduce environment‑caused equipment failures. Flush mounting fits tightly to cabinet cutouts for excellent sealing performance.
4. Rich Expansion Interfaces for Convenient Maintenance Integrated serial, dual‑USB and SD‑card interfaces enable communication, program commissioning, data export and firmware upgrade without external expansion modules. High hardware expandability flexibly accommodates later‑stage process modification, function upgrade and data traceability of projects.
5. Low‑power High‑reliability Circuit Design Industrial low‑power chips and multi‑level electrical‑protection circuits deliver low power consumption and low heat generation. No overheating, black‑screen or lag occurs under prolonged operation. Built‑in voltage‑stabilizing, filtering and surge‑protection circuits effectively suppress industrial power‑grid fluctuation and electromagnetic interference for stable circuit operation and low failure rate.

Ⅴ. Application Scenarios

1. Small‑and‑medium‑size Stand‑alone Automated Machinery: Parameter setting, status monitoring and fault alarming for packaging machines, conveyors, printing machines and light‑industry forming equipment.
2. Environmental‑protection & Process‑control Equipment: Small‑and‑medium‑scale process automation monitoring for water‑treatment plants, dust‑removal environmental‑protection units, HVAC systems and material‑handling production lines.
3. Local On‑site Operation Terminals: On‑site commissioning, parameter modification, status review, alarm acknowledgement and routine maintenance for shop‑floor equipment.
4. Supporting for Rockwell Automation PLC Systems: Compatible with full‑range Allen‑Bradley PLCs to build complete human‑machine interaction systems for equipment data visualization and logic interlock control.
5. Legacy‑equipment Upgrade‑replacement Projects: Replacement of aged or failed HMI units of the same series; supporting HMI terminals for production‑line refurbishment, system expansion and equipment‑modification projects.

Ⅵ. Product Advantages

1. Excellent Original‑factory Matching & System Compatibility: Genuine Rockwell Automation HMI perfectly compatible with full‑range Allen‑Bradley PLC‑based industrial‑control systems. Consistent protocol implementation ensures stable data exchange free of communication lag and data loss. It serves as the optimal matching HMI for small‑and‑medium‑size Allen‑Bradley control systems.
2. High‑stability Grayscale Screen with Low Power Consumption and Long Service Life: The industrial grayscale display solution features lower power draw and superior anti‑aging performance. Durable LED backlight adapts to non‑stop operation. Compared with color touch screens, it is well‑suited for mission‑critical industrial monitoring with extremely low failure rate.
3. Accurate Industrial Touch with Broad Site Adaptability: Resistive industrial touch works reliably under oil contamination, dust and gloved‑operation conditions without touch drift. Robust hardware withstands frequent intensive on‑site operation in workshops.
4. Compact & Reliable Construction with Low Maintenance Cost: Compact sealed enclosure fits confined mounting spaces with high protection grade and strong anti‑interference capability. Year‑round stable operation requires minimal servicing. High durability and long service life greatly reduce maintenance and replacement costs.
5. Convenient & Flexible Configuration with Strong Expandability: Mature FactoryTalk configuration software enables easy programming and commissioning. It supports access‑rights management, multi‑language switching and data‑log storage, and flexibly adapts to new‑build and retrofitted automation projects with outstanding overall cost‑performance.
