Description
ABB 5SHY35L4512 5SXE08-0166

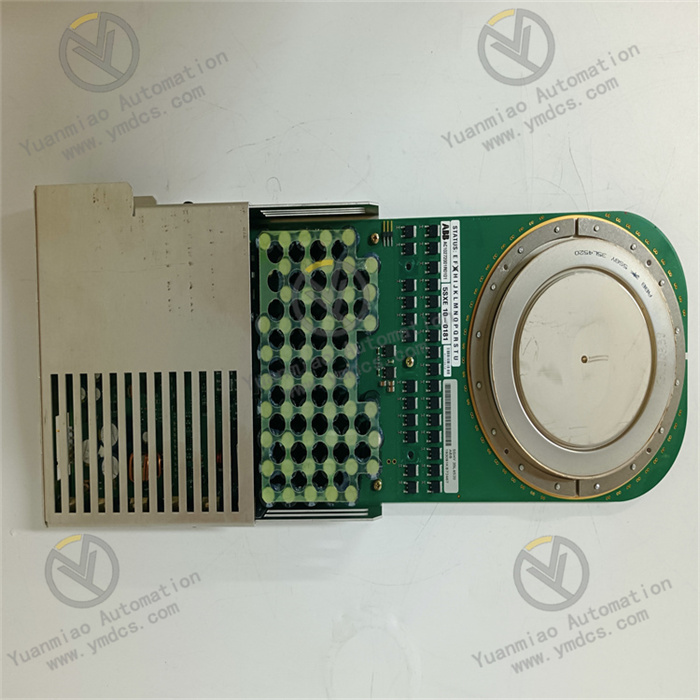

ABB 5SHY35L4512 is an Asymmetric Integrated Gate-Commutated Thyristor (Asymmetric IGCT) high-power semiconductor module, widely used in high-voltage and high-power industrial applications such as voltage source converter-based high-voltage direct current (VSC-HVDC) transmission and high-voltage frequency converters. It features a rated voltage of 4500V, a rated current of 4000A, along with low on-state voltage drop and high reliability. The detailed description is as follows:
1. Product Positioning
Product Type
As an Asymmetric IGCT module, it belongs to ABB’s 5SHY series of high-power semiconductor devices, suitable for megawatt-level power electronic equipment, and is especially adapted to low-frequency (<100Hz) and wide temperature range operating conditions.
Core Advantages
Low on-state power loss, strong electromagnetic interference (EMI) immunity, a simplified control interface with status feedback, support for AC/DC power supply, and enablement of series connection, making it ideal for high-voltage and high-power conversion scenarios.
Applicable Fields
High-voltage direct current (HVDC) transmission, VSC-HVDC transmission, high-voltage frequency drives (VFD), power quality management systems, industrial high-power drives, power system stability control, etc.
2. Technical Parameters
| Parameter Category | Parameter Value | Remarks |
|---|---|---|
| Full Model Number | 5SHY35L4512 (Material No.: 3BHE014105R0001) | Asymmetric IGCT |
| Rated Voltage (VDRM) | 4500V | Blocking voltage |
| Rated Current (ITGQM) | 4000A | On-state current |
| Peak Surge Current (IτsM) | 35kA | Surge withstand capacity |
| On-state Voltage Drop | Approx. 1.15-2V (2V@4000A) | Typical value |
| Turn-on Time | Approx. 10μs | Typical value |
| Turn-off Time | Approx. 100μs | Typical value |
| Control Voltage | ±15V (Refer to similar IGCT models) | Gate drive |
| Operating Temperature | Industrial wide temperature range | Adapted to harsh conditions |
| Weight | Approx. 3.17kg (excluding packaging) | Net weight of single module |
3. Working Principle
Structural Features
Integrated with gate drive and asymmetric thyristor chips, it combines the high-voltage and high-current capabilities of thyristors with the gate turn-off characteristics similar to IGBTs. No external turn-off circuit is required, simplifying the design.
Operating Mechanism
- Turn-on: Applying a positive voltage to the gate enables fast turn-on of the device with a low on-state voltage drop, suitable for high-current transmission.
- Turn-off: Applying a reverse voltage to the gate achieves fast turn-off through gate commutation with a turn-off time of approximately 100μs, adapted to low-frequency and high-power conversion.
- Protection Functions: Built-in overcurrent, overvoltage and overheating protection, which cooperates with the drive circuit to realize fast fault response and status feedback.
4. Installation and Maintenance
Installation Requirements
- Heat Dissipation: Adopt forced air cooling or water cooling systems to ensure the junction temperature stays within the safe range.
- Mechanical Fixation: Adapt to industrial standard installation dimensions; the tightening torque shall comply with manual specifications to prevent loosening caused by vibration.
- Electrical Connection: The main circuit busbar shall be designed with low inductance, and shielded wires shall be used for gate control lines to reduce electromagnetic interference.
Maintenance Key Points
- Regularly inspect the heat dissipation system (fans, water pumps, radiators) and clean dust and scale to ensure heat dissipation efficiency.
- Monitor the on-state voltage drop, gate drive voltage and temperature; troubleshoot module or drive faults in a timely manner if abnormalities occur.
- Conduct insulation tests in accordance with ABB specifications to avoid short circuits caused by insulation aging or damage.
5. Application Scenarios
- Power Transmission: Converters for HVDC and VSC-HVDC, adapted to 3000A+ and 4500V ratings, improving transmission efficiency and system stability.
- Industrial Drives: Variable frequency speed regulation of high-voltage motors (e.g., mining, metallurgy, ship propulsion), meeting megawatt-level power requirements with high efficiency and energy saving.
- Power Quality: Static Synchronous Compensator (STATCOM), Active Power Filter (APF), which mitigate grid harmonics and reactive power to improve power supply quality.
- Others: High-voltage UPS, induction heating power supplies, high-power test platforms and other high-voltage and high-power equipment.
