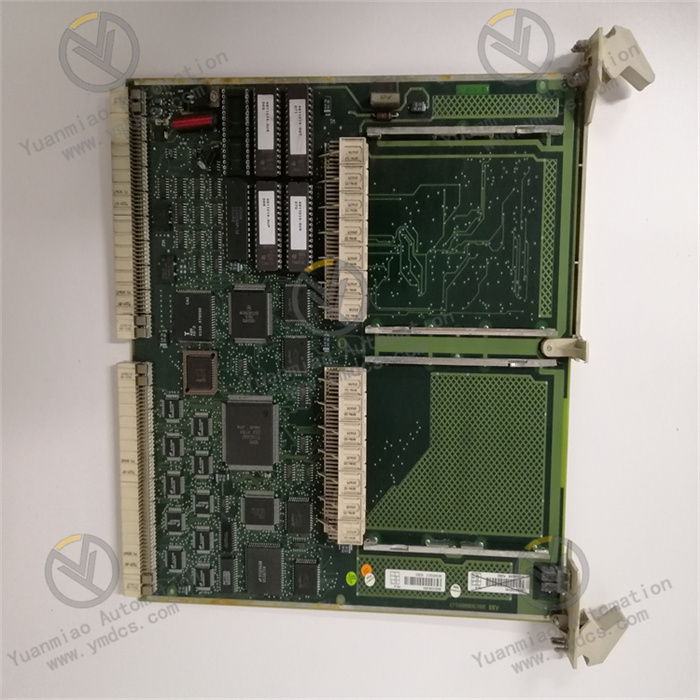

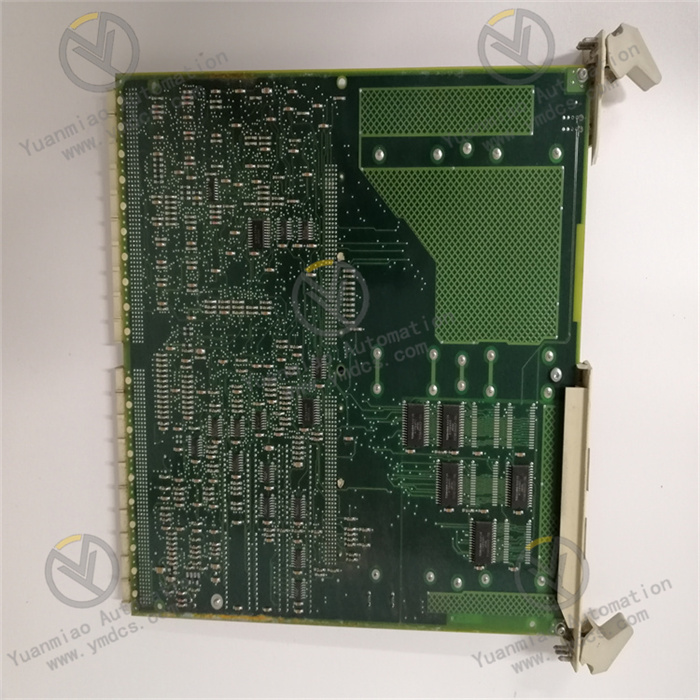

ABB SC520 3BSE003816R1
I. Overview
ABB SC520 3BSE003816R1 is a high-performance industrial automation control module, with its core positioning as a "multi-functional integrated process control and data acquisition unit". Designed specifically for complex industrial scenarios such as chemical engineering, oil and gas, power energy, and water treatment, this module integrates a high-performance local CPU, multi-protocol communication interfaces, and flexible I/O expansion capabilities. It can implement core functions including analog/digital signal processing, precise PID control, data acquisition and transmission, and local logic operation. It can either serve as an independent control unit to reduce the load on the upper computer or be seamlessly integrated into the existing DCS and PLC system architectures, making it a core component for improving the automation level of industrial processes and ensuring control accuracy and operational stability.
II. Core Features
High-performance Local Control and Computing: Built-in high-performance CPU supports complex control algorithms and logic operations, and integrates PID function blocks with PV-SP. It can realize precise proportional-integral-derivative regulation of process variables and set values, and independently complete closed-loop control tasks without relying on the upper computer, effectively improving control response speed and reducing the overall system load.
Multi-protocol Communication and Flexible Expansion: Natively supports multiple industrial communication protocols such as PROFIBUS, CANopen, RS485, EtherCAT, and Modbus TCP/IP, while reserving 4 communication expansion interfaces. It can be expanded into any standard bus protocol module as needed, achieving seamless interconnection with sensors, actuators, upper computers, and third-party devices to meet the requirements of complex system integration.
Modular Design and I/O Adaptability: Adopting a modular architecture, it supports the expansion of multiple sub-module slots and can flexibly configure digital/analog input and output channels. Compatible with ABB Advant OCS and S100 I/O systems, it can quickly adjust hardware configurations according to on-site needs, balancing functional expandability and investment economy, and adapting to control scenarios of different scales.
Industrial-grade Reliability and Environmental Tolerance: Made of high-quality materials, it has excellent dustproof and moistureproof performance, with an operating temperature range of -20℃~60℃. It can resist the impacts of electromagnetic interference, vibration, and temperature-humidity fluctuations in industrial sites, with a mean time between failures (MTBF) reaching high industrial standards, meeting the 24-hour continuous operation requirements of critical processes.
- Convenient Installation and Operation & Maintenance Adaptability: Supports 35mm standard DIN rail mounting, featuring a compact size that does not occupy excessive control cabinet space, with simple wiring and module replacement operations. Equipped with comprehensive fault diagnosis and status feedback functions, it can quickly locate problems such as communication abnormalities and I/O faults, reducing the difficulty of on-site operation and maintenance and downtime losses.
III. Technical Parameters
| Parameter Name | Specification |
|---|---|
| Product Model | ABB SC520 3BSE003816R1 |
| Product Type | Industrial Automation Control Module (Process Control, Data Acquisition, PID Regulation) |
| Product Attribute | Belongs to ABB 800XA/Advant Master series, modular structure, industrial-grade protection |
| Power Supply Parameters | Operating Voltage: 24VDC (standard industrial power supply, can be adjusted according to application scenarios as needed) |
| Physical Parameters | Dimensions: 291mm (length) × 300mm (width) × 30mm (height); Net Weight: approx. 0.742kg |
| Communication Capability | Supports PROFIBUS, CANopen, RS485, EtherCAT, Modbus TCP/IP; 4 reserved communication expansion interfaces |
| Environmental Adaptability | Operating Temperature: -20℃~60℃; Protection Level: Industrial-grade dustproof and moistureproof; Excellent resistance to electromagnetic interference and vibration |
| Compatibility and Adaptation | Compatible with ABB 800XA series, Advant OCS/S100 I/O systems, AC400/MB300 controllers |
| Installation and Functions | Installation Method: DIN rail mounting/rack mounting; Additional Functions: PID control, fault diagnosis, 2MB storage space |
IV. Working Principle and Application Logic
The ABB SC520 3BSE003816R1 control module achieves precise control and data flow of industrial processes based on the closed-loop working logic of "signal acquisition - operation processing - control output - communication feedback". Its core working process is as follows:
Through the configured I/O sub-modules and expansion channels, it synchronously collects analog signals (such as temperature, pressure, liquid level) and digital signals output by on-site sensors. The built-in filter circuit optimizes signal quality and eliminates interference clutter, providing an accurate data foundation for subsequent operation processing.
The built-in CPU processes the collected signals in real time, completes the comparison operation between process variables and set values in combination with preset control logic and PID algorithms, and generates precise control instructions. At the same time, it can independently execute local logic operations, reducing the data processing pressure on the upper computer and improving system response efficiency.
The control instructions generated by the operation are transmitted to actuators (such as valves, motors, regulators) through analog/digital output channels to realize closed-loop regulation of industrial processes. Meanwhile, through multi-protocol communication interfaces, real-time data and equipment status are uploaded to the upper computer or DCS system, and upper-level instructions are received synchronously to adjust control parameters.
